The damage you find at devanning was set by the packing spec

ISTA 3A tests a 760 mm free fall, 1-200 Hz random vibration and 1.5x stacking compression. It does not test a 30-day temperature and humidity cycle. A carton that passes ISTA 3A can still sit through 60°C days and 10°C nights inside the container, take the condensation that forms on the roof panel and drips down, and arrive with grey-green bloom across the veneer face. Condensation belongs to desiccant mass and barrier film, not to box compression strength. An FF&E procurement contract has to assign the two failures separately: mechanical shock to the ISTA 3A report and the 5-ply carton spec, condensation to calcium chloride dosing per container and a heat-sealed PE barrier. Sorted out at devanning instead, a remake plus air freight runs 45 to 60 days.

Packing is usually quoted as a single line item, so nothing on the bid sheet shows how many plies the carton has. The cost delta between a 3-ply residential carton and an export-grade 5-ply double-wall is small per container. Over a 20- to 40-day ocean voyage crossing equatorial temperature swings ($60^\circ\text{C} \leftrightarrow 10^\circ\text{C}$), ambient air reaches saturation point, precipitating “Container Rain” that douses packaging and causes extensive veneer mold and fungal bloom. Furthermore, port handling shocks cause stone fracture and corner impact gouges. When crates open with damaged goods, manufacturing and air-freighting replacements takes 45 to 60 days, which moves the opening date and puts already-contracted group bookings and banquet dates at risk; the size of that OpEx hole depends on key count and how much business is already on the books.

Sunder integrates B2B Value Engineering (VE) and Transit Packaging Dynamics, standardizing 5-layer heavy-duty impact packaging, calcium chloride desiccant blankets, ISTA 3A testing, and 100% factory FAT pre-shipment sign-offs so that condition on arrival becomes a contractual acceptance item rather than an expectation.

1. Container Rain Dew-Point Thermodynamics & Packaging Compression Model

Inside maritime containers, the ambient dew-point temperature fluctuates with extreme thermal shifts:

+-------------------------------------------------------------------------+
|     Maritime Container Condensation & Container Rain Thermodynamics     |
+-------------------------------------------------------------------------+
|  Container Relative Humidity (RH %)                                     |
|    ▲                                                                    |
| 100│ ═════════════════════════════════     [Night cooling ➔ 100% Dew Pt]|
|    │ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲ ╱╲     [Roof condensation ➔ Heavy Rain|
|  80│                                                                    |
|    │ ─────────────────────────────────                                  |
|  45│   [Sunder CaCl₂ Desiccant Blanket]═══ [RH clamped below 45%]       |
|    │  (CaCl2 absorption >=200% ➔ Irreversible gel ➔ Zero moisture rain) |
|   0└──┴──────────────────────────┴──────────────────────────► Time (Days|
|        Day 1                    Day 15                      Day 30      |
+-------------------------------------------------------------------------+

+-------------------------------------------------------------------------+
|     5-Layer Heavy-Duty Contract Furniture Transit Packaging Armor       |
+-------------------------------------------------------------------------+
|  [Casegoods Lacquered Surface / PVD Metal]                              |
|  ┌─────────────────────────────────────────────────────────────────┐   |
|  │ Layer 1: 3.0 mm High-density EPE foam (Eliminates micro-rubbing) │   |
|  ├─────────────────────────────────────────────────────────────────┤   |
|  │ Layer 2: Scratch-proof anti-static PE film (Full heat-sealed)   │   |
|  ├─────────────────────────────────────────────────────────────────┤   |
|  │ Layer 3: 10 mm L-shaped rigid paperboard protectors (500kg proof│   |
|  ├─────────────────────────────────────────────────────────────────┤   |
|  │ Layer 4: K=K 5-ply reinforced double-wall carton (BCT >= 3,500 N)│  |
|  ├─────────────────────────────────────────────────────────────────┤   |
|  │ Layer 5: Export-grade fumigation-free OSB crate / palletization │   |
|  └─────────────────────────────────────────────────────────────────┘   |
+-------------------------------------------------------------------------+

2. 4 Core Contract Furniture Packaging & Factory Acceptance Test (FAT) Standards

Sunder transforms protective packaging into verifiable contractual milestones:

1. 5-Layer Impact Packaging Armor & 10mm Rigid Edge Protectors

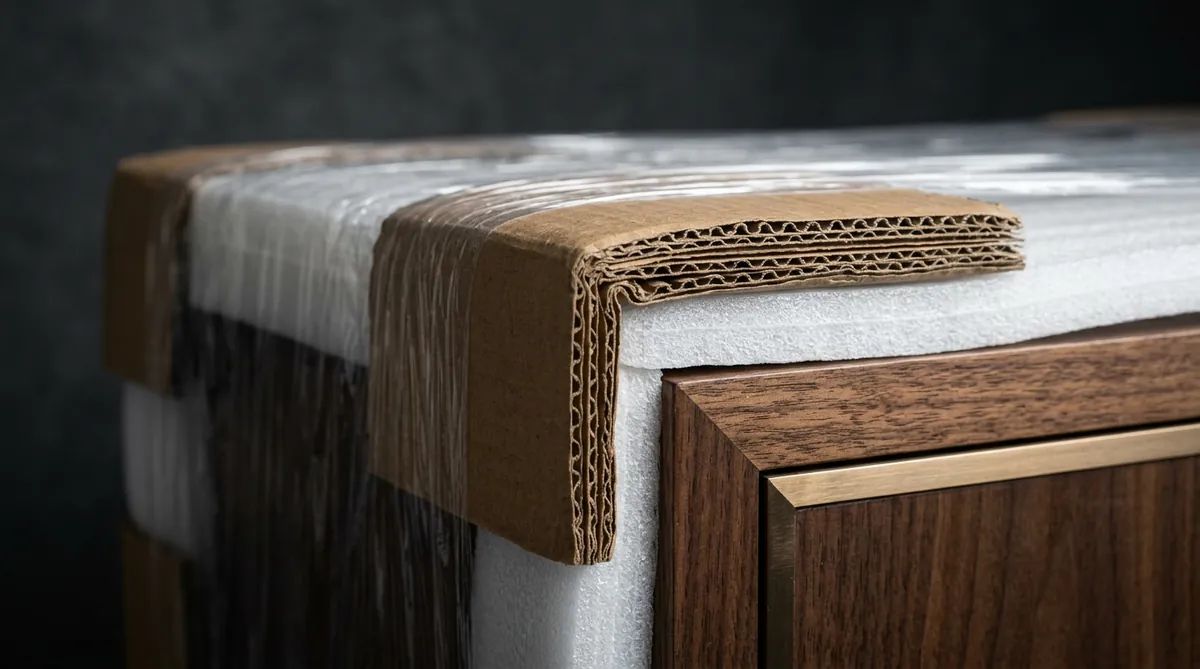

• Casegoods are wrapped in 3mm EPE foam and heat-sealed PE barrier film. All perimeters integrate $\ge 10\text{ mm}$ thick, $\ge 50\text{ mm}$ wide compressed L-shaped paperboard edge protectors resisting $\ge 500\text{ kg}$ of lateral crushing force.

2. Calcium Chloride (CaCl₂) High-Capacity Desiccant Blankets (Absorption ≥ 200%)

• Replaces standard silica gel with industrial-grade calcium chloride desiccant blankets ($\ge 5.0\text{ kg}$ per 40HQ container).
• Absorbed moisture converts irreversibly into thick polymer gel, holding container humidity at $\text{RH} \le 45\%$ across logged 30-day voyages. Under-dosing, or a container with perished door seals, will not hold that figure.

3. Dedicated OSB Wood Crating for Fragile Stone + Impact Sensors

• Sintered stone and natural marble tops are packed in $15\text{ mm}$ engineered OSB crates lined with $30\text{ mm}$ EVA foam cushions.
• External crates feature TiltWatch (anti-inversion) and ShockWatch (impact threshold) telemetry indicators to monitor transit handling.

4. ISTA 3A Transit Simulation Certification & 100% Factory FAT Sign-Off

• Packaging prototypes 100% pass ISTA 3A testing (760mm free-fall drops, 1-200 Hz random vibration, and 1.5x dynamic stacking compression) at certified laboratories.
• Shipments undergo 100% pre-crating Factory Acceptance Testing (FAT) before container loading.

3. Actuarial Quantification: 300-Key Hotel Export Logistics 10-Year Model

The table below is a modelled scenario, not measured history: 300 keys, 25 40HQ containers, an 8.5% damage rate, a 45-day remake-and-airfreight cycle, 30 days of lost sellable inventory, and room rates taken from the opening-year budget. These are model inputs.

300-Key Hotel Maritime Logistics Packaging Financial Actuary

Under those assumptions, the NTD 600k saved on packaging materials sits against a combined gap of about NTD 18,900,000 in remakes, site repairs, and 30 days of lost inventory. Nearly all of it is the delayed-opening line; a project carrying schedule float, or damage concentrated in millwork that can be repaired on site, produces a much smaller number.

4. 40HQ Volumetric Payload Optimization (CBM Engineering)

+-------------------------------------------------------------------------+
|        40HQ Container Volumetric CBM Spatial Payload Optimization       |
+-------------------------------------------------------------------------+
|  40HQ Internal Gross Volume: 67.7 CBM                                   |
|  【Conventional Disorganized Loading (65% Efficiency / 44 CBM)】         |
|   ➔ Requires 38 Containers for 300 Rooms (Inflates ocean freight)       |
|                                                                         |
|  【Sunder 3D Digital Loading Optimization (>= 92% Efficiency / 62.5 CBM)】|
|   ┌─────────────────────────────────────────────────────────────────┐   |
|   │ 1. Dense Base Loading: Heavy stone/metal crates on container floor│ |
|   ├─────────────────────────────────────────────────────────────────┤   |
|   │ 2. Payload Compression: 300 Rooms fit in 25 Containers (-13 Ctr)|   |
|   │    ➔ Saves > NT$ 1,950,000 in direct ocean freight capital       │   |
|   ├─────────────────────────────────────────────────────────────────┤   |
|   │ 3. Heavy-duty ratchet lashing straps + cargo nets prevent slips │   |
|   └─────────────────────────────────────────────────────────────────┘   |
+-------------------------------------------------------------------------+

5. Conclusion: Packaging Belongs in the Contract, Not the Packing List

In global hospitality procurement, the most expensive mistake usually shows up not on the factory floor but on the day the container opens: the goods are on site, the install crew is booked, and the replacement is still at sea.

Sunder standardizes 5-layer heavy-duty packaging, calcium chloride desiccant blankets, ISTA 3A certifications, and 3D CBM optimization across all export contracts. Put these in the acceptance clauses rather than the shipping notice: carton ply count, desiccant mass per container, the ISTA 3A report, and the signed FAT record all belong as attachments to a payment milestone. State the boundary as well. Packaging engineering addresses vibration, stacking load, and condensation; port strikes, transhipment delays, handling damage during devanning, and secondary damage from inadequate site protection sit outside this specification and are handled by insurance and site logistics planning.
