21.6 Joules of Luggage Impact and What It Does to Edge Banding

21.6 Joules of Luggage Impact and What It Does to Edge Banding

A 30 kg hard-shell suitcase rolling at 1.2 m/s carries roughly 21.6 J of kinetic energy. Land that on the 2 mm² contact patch of a wheel corner and the instantaneous contact stress passes 45 MPa, above what a 0.3 mm paper foil tape and the substrate beneath it will absorb. That is the real load case for guestroom entryways, luggage benches and casework plinths, and it is why thin banding chips within the first 1 to 3 months of operation. Once the tape splits, mop water follows the capillary path into the core and the failure stops being cosmetic. The rest of this article turns that path into numbers a specification can hold: banding thickness, glue line, radius, and the test method that verifies each one.

When guests roll heavy 30 kg30\text{ kg} aluminum-magnesium hard-shell suitcases through entry alcoves or housekeeping crews maneuver 80 kg+80\text{ kg}+ metal cleaning carts around sharp corners, furniture perimeters face severe mechanical impacts from sharp metal corners and caster wheels. If procurement specifications permit conventional residential 0.3 mm0.3\text{ mm} paper foil or thin wood tape edge banding, corners fracture, chip, and expose raw substrate within 1 to 3 months. Once edges crack, mop water and ambient humidity penetrate porous timber cores, triggering swelling, rot, and complete casework failure.

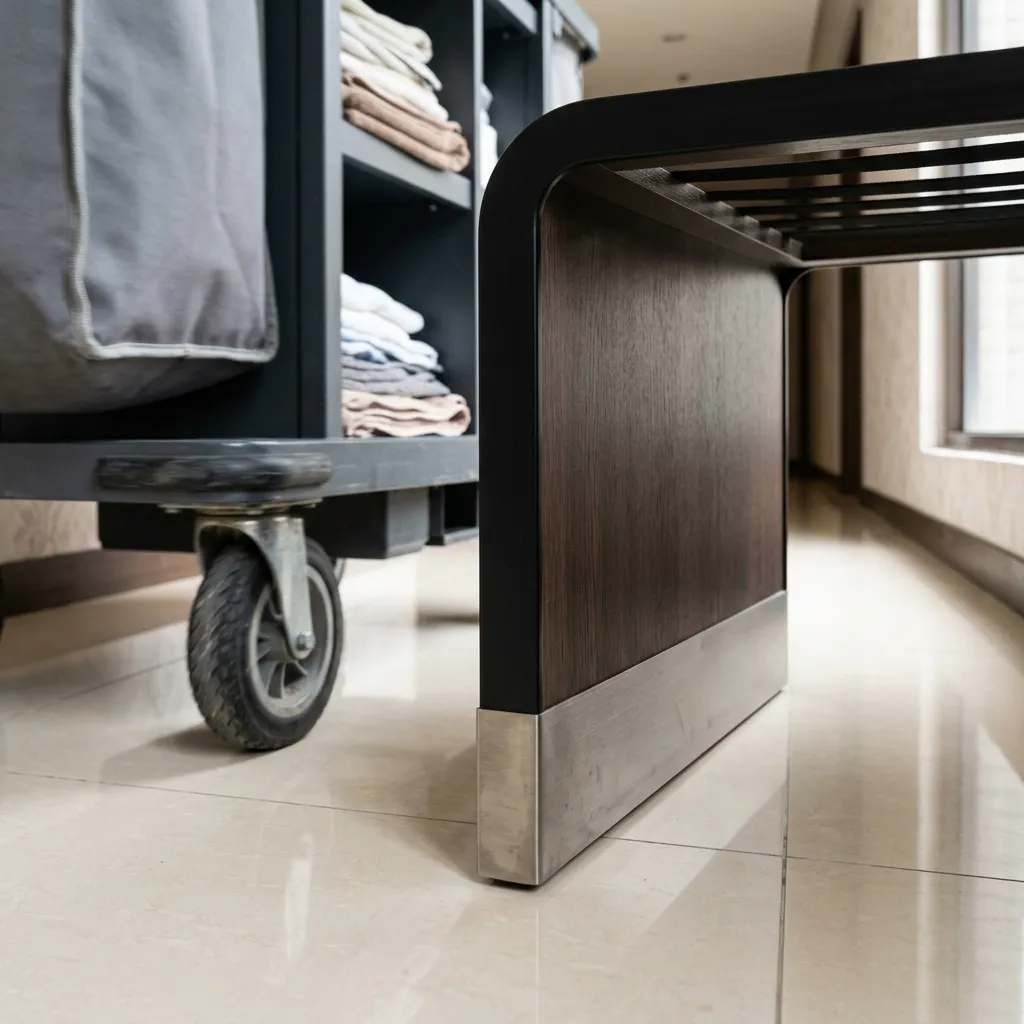

The answer is Layered Armored Engineering: kinetic impact modeling sets the edge specification, with 2.0mm heavy-duty ABS banding and waterproof PUR zero-glue-line hot-melt bonding, so the edge condition is written into specifications a third party can test. Banding thickness is a poor candidate for a Value Engineering (VE) cut, because it decides when the whole panel starts taking on water.


1. Luggage Kinetic Impact Mechanics & Edge Shear Concentration

In classical mechanics, high-velocity mass concentrated across a microscopic contact patch generates high instantaneous contact stresses:

Kinetic Energy Ek=12mv2\text{Kinetic Energy } E_k = \frac{1}{2} m v^2 Contact Stress σ=FimpactAcontact=m⋅Δv/ΔtAcontact\text{Contact Stress } \sigma = \frac{F_{\text{impact}}}{A_{\text{contact}}} = \frac{m \cdot \Delta v / \Delta t}{A_{\text{contact}}}
+-------------------------------------------------------------------------+
|            Luggage Wheel Corner Impact Stress Penetration Model         |
+-------------------------------------------------------------------------+
|  [30kg Hard-Shell Suitcase (Velocity v = 1.2 m/s)]                      |
|        │                                                                |
|        ├──► Kinetic Impact Energy E_k ≈ 21.6 J                          |
|        │                                                                |
|        └──► Concentrated onto 2mm² wheel corner ──► Stress > 45 MPa     |
|                 │                                                       |
|       ┌─────────▼──────────────────────────┐                            |
|       │ 【Conventional 0.3mm Paper Tape】  │                            |
|       │  Zero shock absorption ──► Chipping│                            |
|       │  Substrate exposed ──► Moisture rot│                            |
|       └────────────────────────────────────┘                            |
|                 │                                                       |
|       ┌─────────▼──────────────────────────┐                            |
|       │ 【Contract 2.0mm ABS+PUR Armor】   │                            |
|       │  Elastic dissipation ──► Stress diluted by R3 radius to <= 8 MPa|
|       │  PUR hot-melt seal ──► 100% waterproof barrier (Zero swelling)  |
|       └────────────────────────────────────┘                            |
+-------------------------------------------------------------------------+

2. 4-Tier Impact Hotspot Armored Hierarchy

The three highest-risk impact zones each take a standardized layered armor specification:

+-------------------------------------------------------------------------+
|        4-Tier Armored Edge Cross-Section (Cross-Section)                |
+-------------------------------------------------------------------------+
|  [Layer 1: Heavy Armor]      2.0mm Industrial High-Impact ABS Banding   |
|                              (Notched Izod Impact Strength >= 35 kJ/m²) |
|                                │                                        |
|  [Layer 2: Zero-Glue Line]   German Reactive PUR Hot-Melt (< 0.1mm Line)|
|                                │                                        |
|  [Layer 3: Stress Relief]    CNC Machined Precision R3.0mm Radius Bevel |
|                                │                                        |
|  [Layer 4: Base Plinth Armor]30cm Anodized Aluminum / 8mm Compact Board |
+-------------------------------------------------------------------------+

1. 2.0mm Heavy-Duty Industrial ABS Edge Banding

2. German PUR Reactive Hot-Melt Waterproof Sealing

3. R3.0mm CNC Stress-Relief Radius Beveling

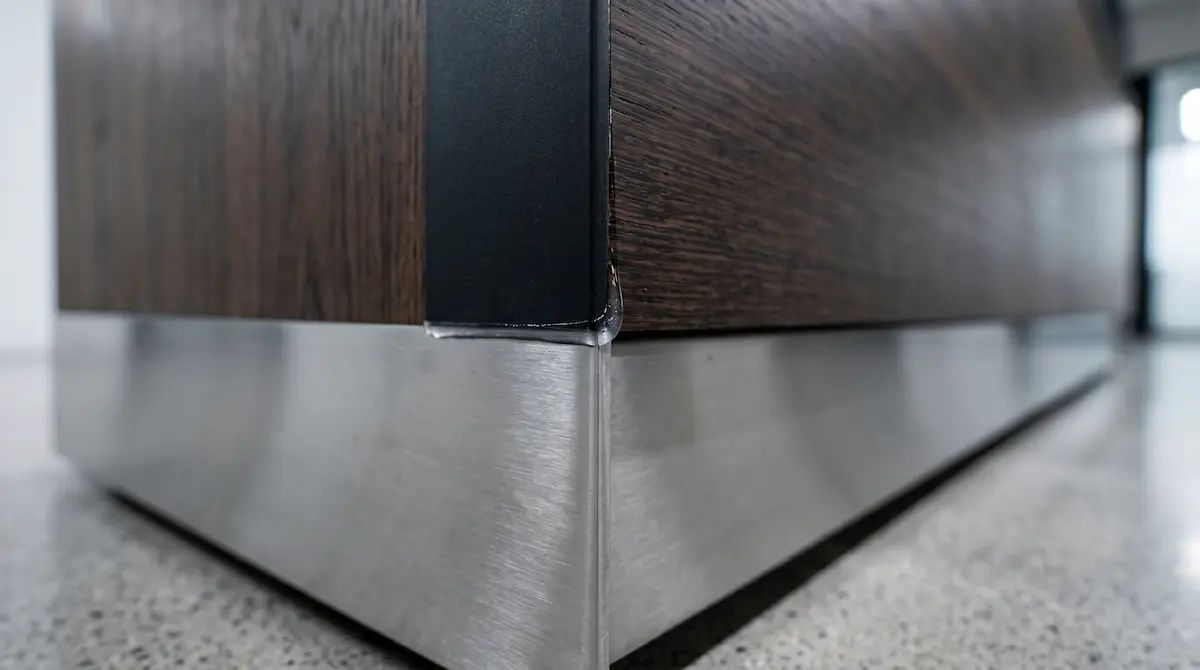

4. 30cm Base Plinth Anodized Aluminum & Compact Laminate Armor


3. ASTM Mechanical Impact & Adhesion Compliance Matrix

Armored Edge Engineering Quality Acceptance Matrix

Inspection Vector Testing Standard Passing Spec
Falling Dart Impact ASTM D2794 (1kg from 1m) Impact Energy >= 10 J
Edge Peel Strength EN 311 Tensile Peel Test Peel Force >= 100 N/cm
Steam & Waterproof DIN 68861/1 Boiling Vapor >= 72 Hours No Swelling
Abrasion Resistance ASTM D4060 Taber (CS-10) 5,000 Cycles Zero Gouge
Thermal Shock Adhes. ISO 9142 Temperature Cycle -40°C ~ 120°C No Creep

4. Zero Moisture Infiltration & Housekeeping OpEx Elimination

Armored edge detailing closes the two routes moisture normally takes into the core:

+-------------------------------------------------------------------------+
|          Armored Detailing vs. Housekeeping & Asset Preservation        |
+-------------------------------------------------------------------------+
|  [Zero Moisture Path]   PUR zero-glue-line ➔ Blocks mop water & alcohol |
|                         --> Core board swelling strictly <= 8%          |
|                                                                         |
|  [Cart Maneuverability] 30cm Aluminum plinth armor ➔ Housekeeping carts |
|                         operate freely without fear of damaging bases   |
|                                                                         |
|  [Zero Field Patching]  2.0mm ABS toughness ➔ Eliminates putty / paint  |
|                         touch-up labor and associated room downtime     |
+-------------------------------------------------------------------------+

5. Total Cost of Ownership (TCO): Fragile Tape vs. Armored Engineering

10-Year TCO Evaluation: Conventional Edge Tape vs. Edge Armor

Evaluation Vector 0.3mm Paper / Thin Foil 2.0mm ABS/PUR
Luggage Impact Life Chips in 1 to 3 months 10 Years Zero Chipping
Adhesive Water Resistance EVA Glue (Peels when damp) PUR Reactive (0% Rot)
Core Swelling Rate 25% ~ 35% Rooms Swelled 0% Moisture Swelling
Annual Touch-Up Costs High (Carpenters re-banding) Zero Maintenance Fee
Chipped Edge Reviews 3% ~ 5% Guest Complaints 0 Edge Complaints
10-Year Cumulative TCO Baseline (100% + Scrap) Reduced to 33% (-67%)

6. Conclusion: Fortifying the Most Vulnerable Architectural Boundaries

In luxury hotel asset preservation, casework durability is dictated not by the strongest component, but by the resilience of its most vulnerable edges. A single chipped corner is the initiation point for moisture swelling, fungal decay, and premature asset write-offs.

2.0mm heavy-duty ABS banding, PUR hot-melt fusion and R3 stress-dispersion profiling address mechanical impact from luggage and carts. Where the dominant wear mode is UV exposure or alkaline cleaning chemistry, the fix belongs in the coating and the substrate, not the banding. Ask for the ASTM D2794 and EN 311 reports rather than a stated tape thickness.
